Desalination plant 240 m3d

Morocco

Year
2017
Summary

Desalination plant with a capacity of 240 m3/d, located in North Morocco, including several high-range electronic elements for control, automation and supervision of installation parameters.

Fresh water produced is used in an industrial process sensitive to raw water salinity.

Category
Brackish Water
Use
Industry
Scope
Design
Maintenance
Operation
Capacity
240 m3/d
Intake
Well
Pre-Treatment
Raw water storage tank from which pre-treatment system is fed.
1- Large diameter glass fiber reinforced polyester (GRP) sand filter with automatic backwash by electric valves.
2- Safety filtration by PVC cartridge filter housing.
Antiscalant dosing system.
RO Process

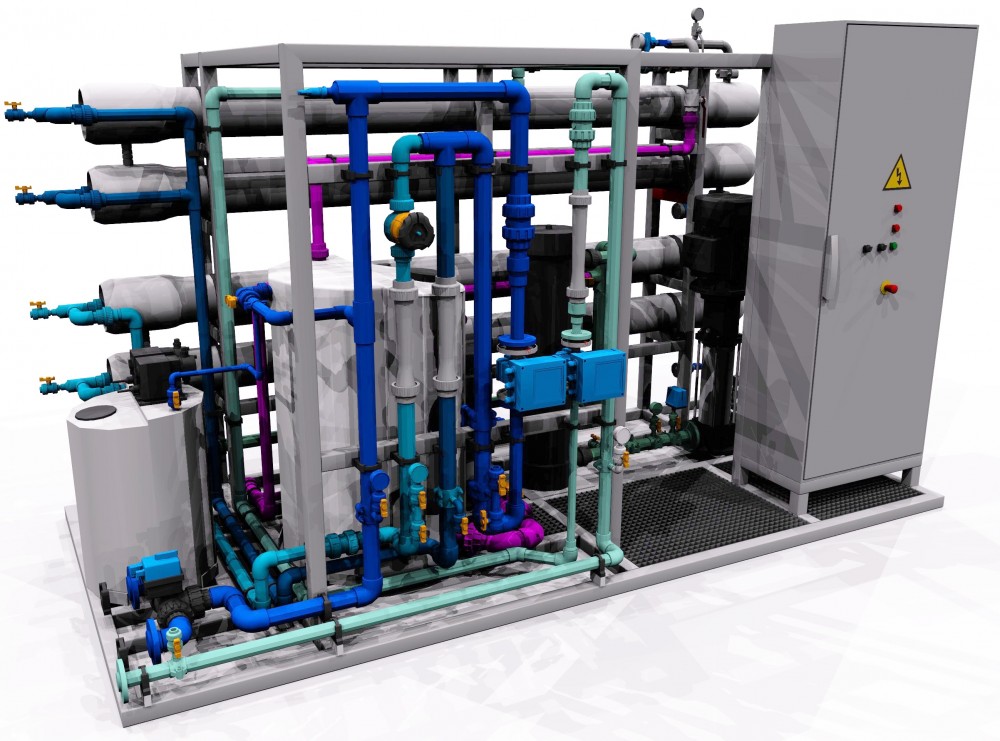

Compact footprint stainless steel skid with the following equipment:
1- Two stages reverse osmosis train 240 m3/d output capacity.
2- High pressure stainless steel vertical multistage feed pump driven by variable frequency drive.
3- Pressure vessels and reverse osmosis membranes.
Automation and control
Operation by programmable logic controller (PLC).
Color HMI system interface (touchscreen).
Instruments for flow and pressure data monitoring and logging.
3G remote maintenance support.
Auxiliary systems
Automatic flushing and cleaning in place (CIP) system.
